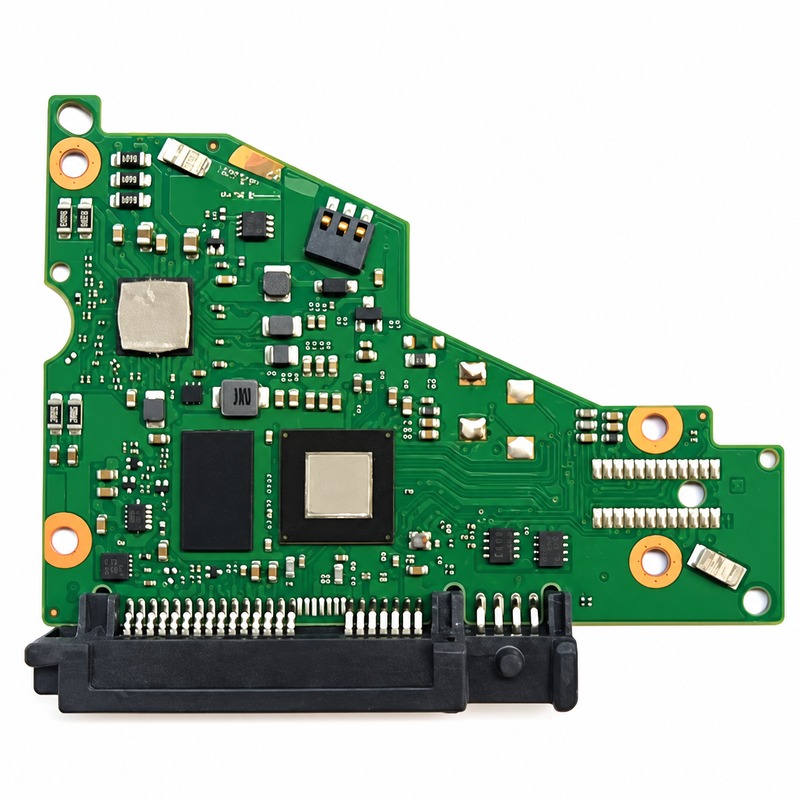

Seagate 100871827 REV A PCB - component side
  • Seagate 100871827 REV A PCB - component side

FAQ:

Modals REV A, REV B, REV C, REV D, REV E, REV P1, REV P2, 00, 01, 02 are they all compatible with each other?
Yes! They are different board modals, but they are compatible! We will ship you a  randomly selected model. Please leave a message if you wish to receive a specific modal, thank you!
Additional information (Main Controller IC, PCB Label) doesn't match, does it matter ?
No ! Theses details are here for reference, but the same PCB models can have different components, what matters is PCB number
Is this PCB compatible with my HDD ?
We cannot list all HDD models compatible with all PCBs. To find the matching HDD PCB you can unscrew your HDD and find the correct "PCB number". In general a Hard Disk PCB is compatible a whole family of hard drives with different capacities : 20G, 30G, 40G, 60G, 80G, 120G, 160G, 200G, 250G, 300G, 320G, 400G, 500G, 750G, 1TB, 1.5TB, 2TB, 3TB, 4TB.

Seagate 100871827 REV A PCB

€79.90
VAT included

Seagate 100871827 REV A PCB available for pre-order.

A board swap alone is not sufficient: the original BIOS/ROM chip must be physically transferred.

Quantity
Available for pre-order

Before buying :

  1. These are just PCBs (Printed Circuit Boards), not the whole HDDs (Hard Disk Drives);
  2. The aim of a PCB swap is data recovery, or hard disk repair,
  3. The buyer is responsible for finding the right PCB for their Hard Drive,
  4. You will benefit from a 14-day return period,
  5. In most cases, you should transfer the BIOS before you swap hard drive PCB, in order to make the replacement board compatible with your HDD. See services below.Transfer possible by Flashing and/or Soldering.
  6. Hard drive failures are not always caused by PCB failure. We cannot guarantee your drive will be repaired by replacing the hard drive PCB.

Seagate 100871827 REV A PCB

Replacement hard-drive PCB bearing the exact reference 100871827 REV A.

Important: simply replacing the board will not make the drive work. The BIOS/ROM chip containing drive-specific adaptive data must be physically transferred from the original PCB to the replacement board.

  • Availability: supplier pre-order.
  • Physical HDDPCB stock: 0; the board is ordered from the supplier after payment is confirmed.
  • Physical BIOS/ROM transfer is mandatory and sold separately.
  • Do not desolder the chip yourself: send the original PCB to our workshop, properly protected.
  • For multiple drives, label each original PCB clearly to prevent mix-ups.

Add the BIOS/ROM transfer service and select the option for a PCB ordered on this website.

A compatible PCB and BIOS/ROM transfer address the electronics only. They cannot guarantee data recovery if the drive also has an internal, mechanical, head or internal-firmware fault.
