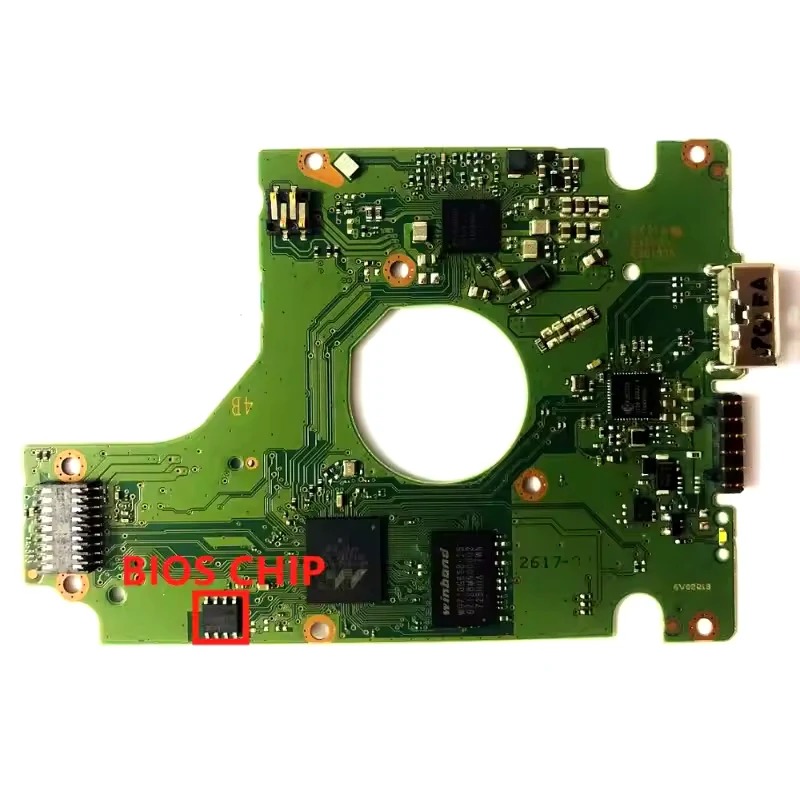

PCB Western Digital 2060-800069-001 REV P1 USB - puce BIOS
  • PCB Western Digital 2060-800069-001 REV P1 USB - puce BIOS
  • Variantes de puce principale Marvell ou M pour PCB 2060-800069-001

FAQ:

Modals REV A, REV B, REV C, REV D, REV E, REV P1, REV P2, 00, 01, 02 are they all compatible with each other?
Yes! They are different board modals, but they are compatible! We will ship you a  randomly selected model. Please leave a message if you wish to receive a specific modal, thank you!
Additional information (Main Controller IC, PCB Label) doesn't match, does it matter ?
No ! Theses details are here for reference, but the same PCB models can have different components, what matters is PCB number
Is this PCB compatible with my HDD ?
We cannot list all HDD models compatible with all PCBs. To find the matching HDD PCB you can unscrew your HDD and find the correct "PCB number". In general a Hard Disk PCB is compatible a whole family of hard drives with different capacities : 20G, 30G, 40G, 60G, 80G, 120G, 160G, 200G, 250G, 300G, 320G, 400G, 500G, 750G, 1TB, 1.5TB, 2TB, 3TB, 4TB.

Western Digital PCB 2060-800069-001 REV P1 USB

€59.90
VAT included

USB PCB for Western Digital 2.5-inch hard drives, board number 2060-800069-001 REV P1. Select the version matching the main controller marking: Marvell or M.

Transfer of the original BIOS/ROM is normally required and is not included.

Main controller
Quantity
In Stock

Before buying :

  1. These are just PCBs (Printed Circuit Boards), not the whole HDDs (Hard Disk Drives);
  2. The aim of a PCB swap is data recovery, or hard disk repair,
  3. The buyer is responsible for finding the right PCB for their Hard Drive,
  4. You will benefit from a 14-day return period,
  5. In most cases, you should transfer the BIOS before you swap hard drive PCB, in order to make the replacement board compatible with your HDD. See services below.Transfer possible by Flashing and/or Soldering.
  6. Hard drive failures are not always caused by PCB failure. We cannot guarantee your drive will be repaired by replacing the hard drive PCB.

Western Digital PCB 2060-800069-001 REV P1

Replacement USB circuit board for selected Western Digital 2.5-inch external hard drives, including model WD10SDZW-11UMGS0.

Checks before ordering

  • The number printed on your original board must be exactly 2060-800069-001.
  • Check the revision and compare the component layout with the product photos.
  • Select the version matching the marking on the large main controller: Marvell or M.

BIOS/ROM transfer

The original board's BIOS/ROM contains drive-specific data. It normally has to be transferred to the replacement board. This service is not included in the PCB price. Contact us before ordering if you would like us to perform the transfer.

Important: a drive that spins but is not detected does not necessarily have a PCB fault. The failure may also involve the USB interface, firmware, read/write heads or another internal component. Replacing the PCB therefore cannot guarantee drive detection or access to the data.

Supplier stock. Indicative sourcing time: approximately two weeks.

Western Digital
2060-800069-001-MARVELL

Data sheet

PCB Number
2060-800069-001
With ROM Chip
Yes
flashable
No, on PCB
BIOS transfer required
Yes
