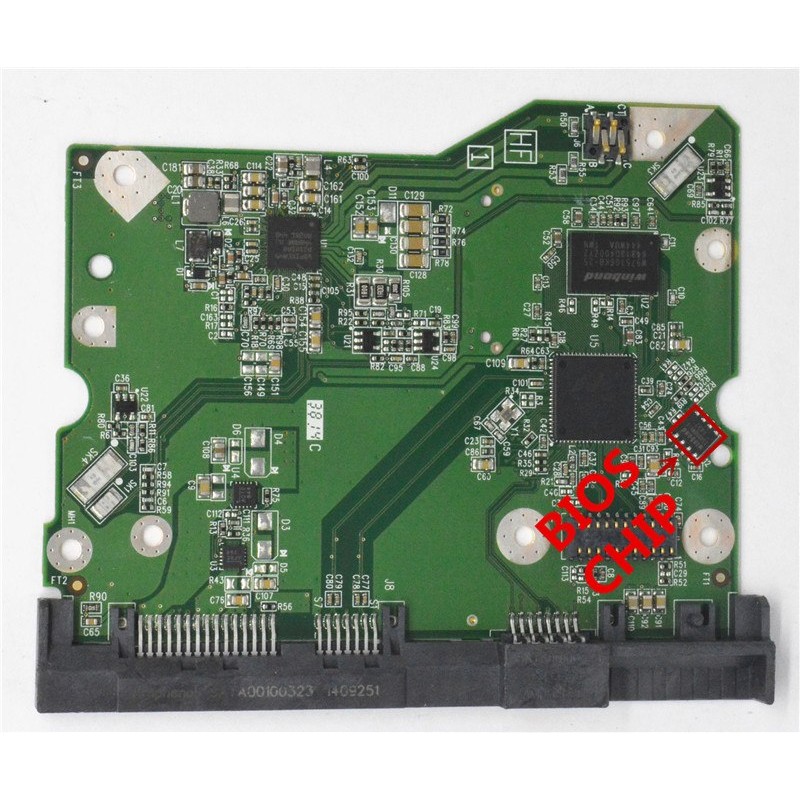

PCB Western Digital 2060-800001-005 REV P1
  • PCB Western Digital 2060-800001-005 REV P1
  • PCB Western Digital 2060-800001-005 REV P1

FAQ:

Modals REV A, REV B, REV C, REV D, REV E, REV P1, REV P2, 00, 01, 02 are they all compatible with each other?
Yes! They are different board modals, but they are compatible! We will ship you a  randomly selected model. Please leave a message if you wish to receive a specific modal, thank you!
Additional information (Main Controller IC, PCB Label) doesn't match, does it matter ?
No ! Theses details are here for reference, but the same PCB models can have different components, what matters is PCB number
Is this PCB compatible with my HDD ?
We cannot list all HDD models compatible with all PCBs. To find the matching HDD PCB you can unscrew your HDD and find the correct "PCB number". In general a Hard Disk PCB is compatible a whole family of hard drives with different capacities : 20G, 30G, 40G, 60G, 80G, 120G, 160G, 200G, 250G, 300G, 320G, 400G, 500G, 750G, 1TB, 1.5TB, 2TB, 3TB, 4TB.

Western Digital PCB 2060-800001-005 REV P1

€39.90
VAT included

Replacement PCB for Western Digital hard drives marked 2060-800001-005 REV P1. Please check the number printed on your original board before ordering.

Quantity
In Stock

Before buying :

  1. These are just PCBs (Printed Circuit Boards), not the whole HDDs (Hard Disk Drives);
  2. The aim of a PCB swap is data recovery, or hard disk repair,
  3. The buyer is responsible for finding the right PCB for their Hard Drive,
  4. You will benefit from a 14-day return period,
  5. In most cases, you should transfer the BIOS before you swap hard drive PCB, in order to make the replacement board compatible with your HDD. See services below.Transfer possible by Flashing and/or Soldering.
  6. Hard drive failures are not always caused by PCB failure. We cannot guarantee your drive will be repaired by replacing the hard drive PCB.

Western Digital PCB 2060-800001-005 REV P1

This product page is for a replacement hard drive controller board matching PCB reference 2060-800001-005 REV P1.

Compatibility check before ordering

  • The PCB number printed on your original board must match 2060-800001-005, ideally with REV P1.
  • Please compare the drive model, connector layout and BIOS/ROM chip presence.
  • If you are unsure, contact us before ordering with clear photos of both sides of your PCB.

Important: BIOS / ROM transfer

For Western Digital hard drives, the PCB may contain drive-specific data in the BIOS/ROM chip. The original ROM may need to be transferred or reprogrammed before the replacement board can work with the drive.

Western Digital
2060-800001-005

Data sheet

With ROM Chip
Yes
Size
3.5" desktop PC
Interface
SATA
flashable
No, verified on PCB
BIOS transfer required
Yes
